Liyi 1200C Laboratory Heat Treatment Muffle Furnace
The Liyi Laboratory heat treatment muffle furnace is designed for specialized baking processes, including aging tests for electronic components and plastic chemical products. It's suitable for iron preheating, quenching, burning, stewing, annealing, ashing tests, and other high-temperature processing experiments.
Applications
This muffle furnace (box furnace/chamber furnace) is widely used in metallurgy, ceramics, glass, machinery, analysis testing, semiconductor, and scientific research fields.
Specifications
| Model |
LY-612 |
LY-625 |
LY-630 |
LY-640 |
LY-X |
| Chamber size (W*H*D)cm |
12*8*20 |
25*16*40 |
30*20*50 |
40*40*60 |
Customizable |
| Temperature Range |
RT~1200℃ (Higher temperatures available upon request) |
| Heating Up Time |
RT~1200℃ in approximately 50 minutes |
| Temperature Accuracy |
±1℃ |
| Heat Element |
Top quality resistance wire (other options available: silicon carbide rod, SiC heater, MoSi2 heater) |
| Thermal Couple |
Type K, Type S, Type B available |
Temperature Control Features
- PID automatic control with auto-tune function
- 31 or 51 programmable segments for precise control
- Built-in protection for over-heating and broken thermal couples
- Large digital control panel (48 x 96 mm) for easy operation
Furnace Structure

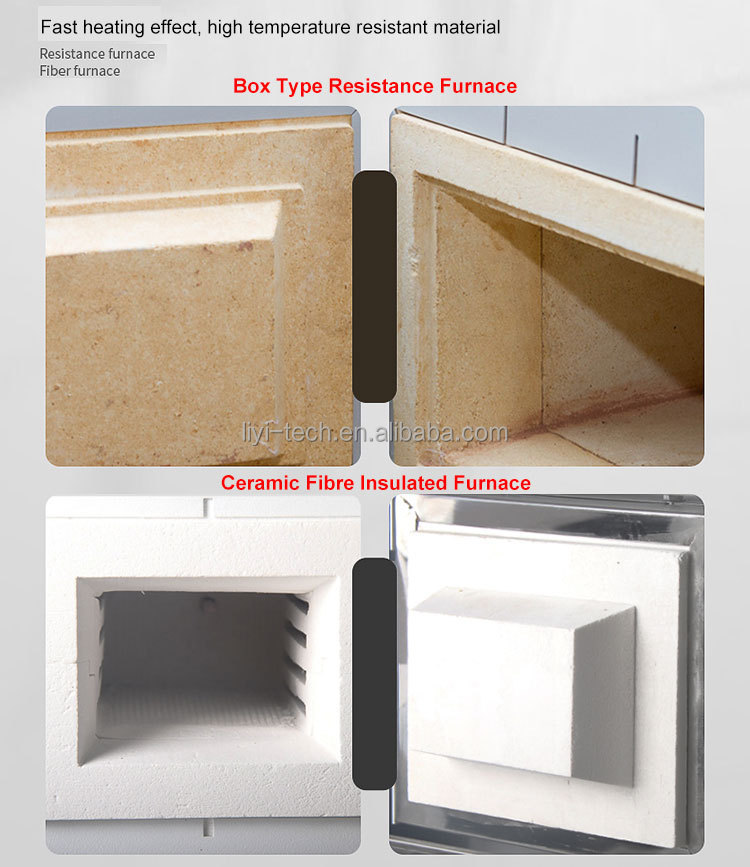

- 1430 type high purity ceramic fiber insulation (40% energy saving, 30% lighter than traditional furnaces)

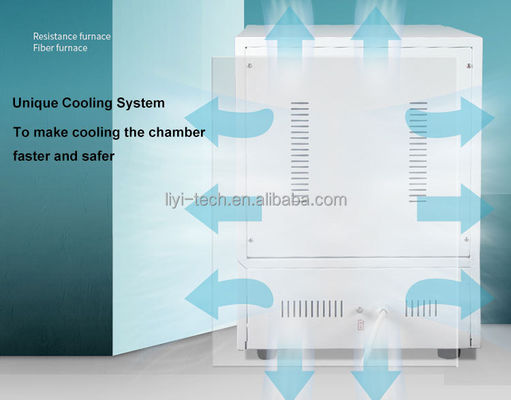

- Double-layer steel casing with fan cooling keeps surface temperature below 50℃

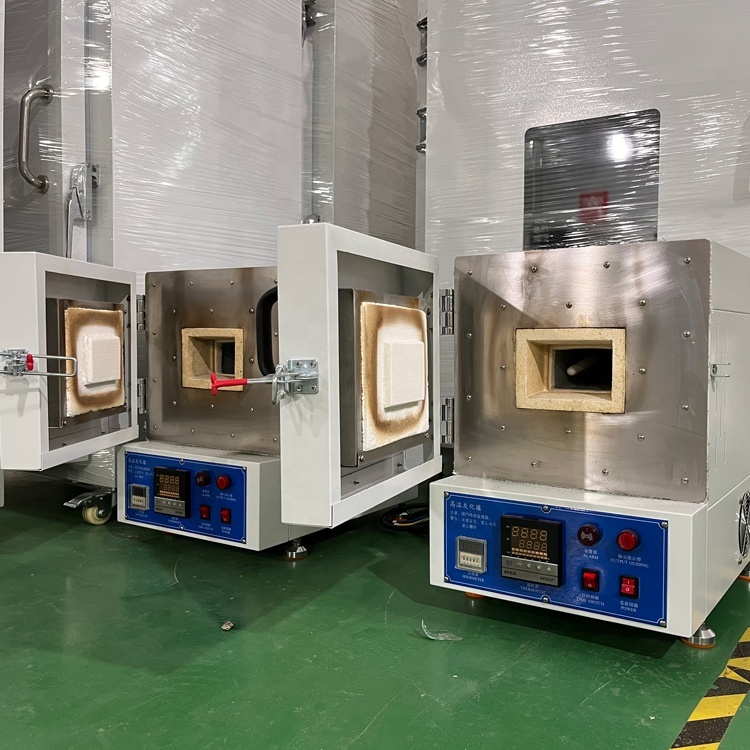

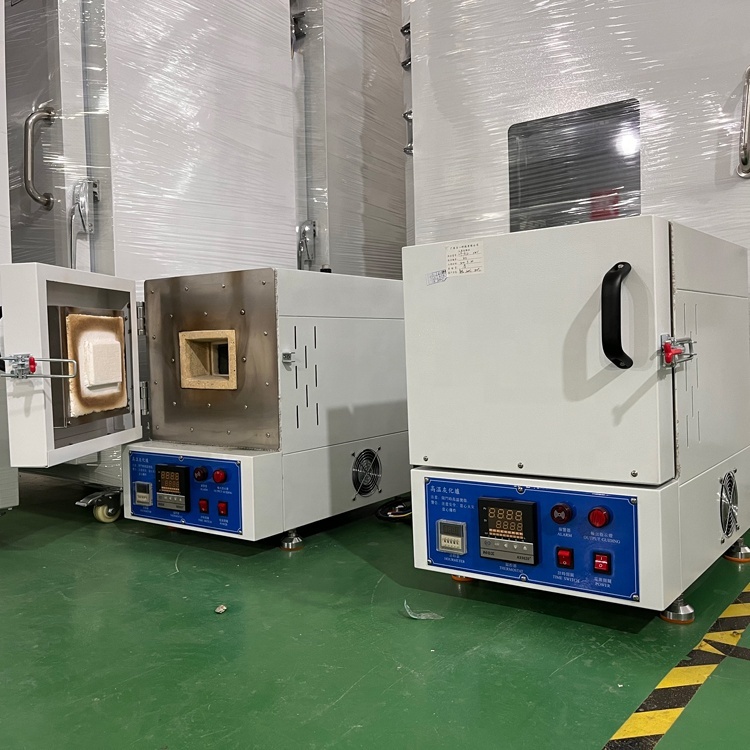

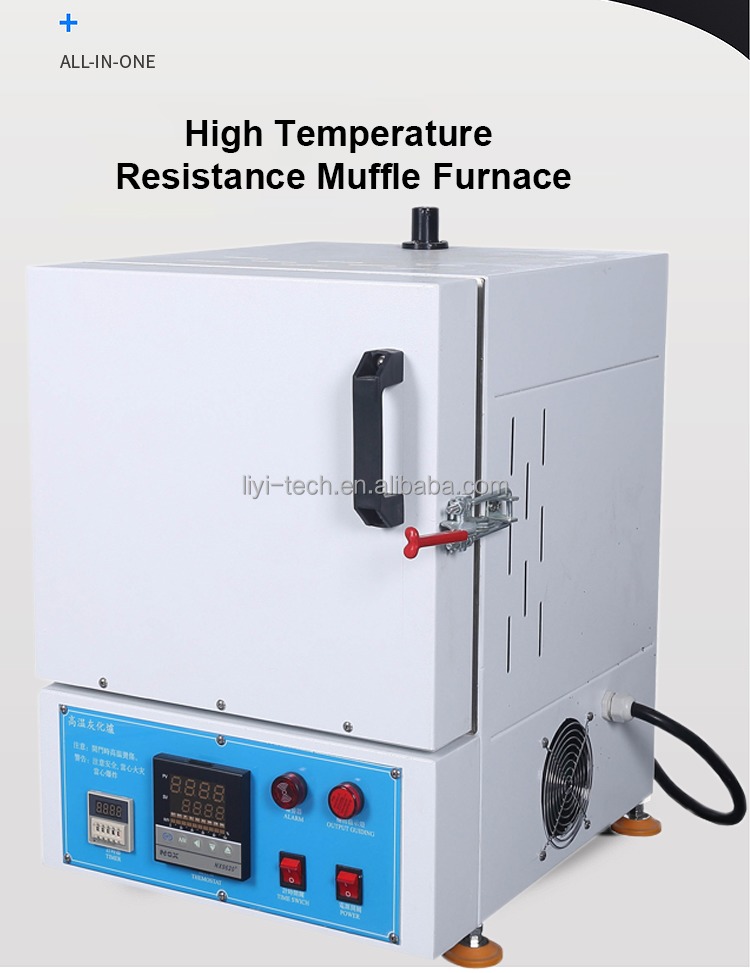

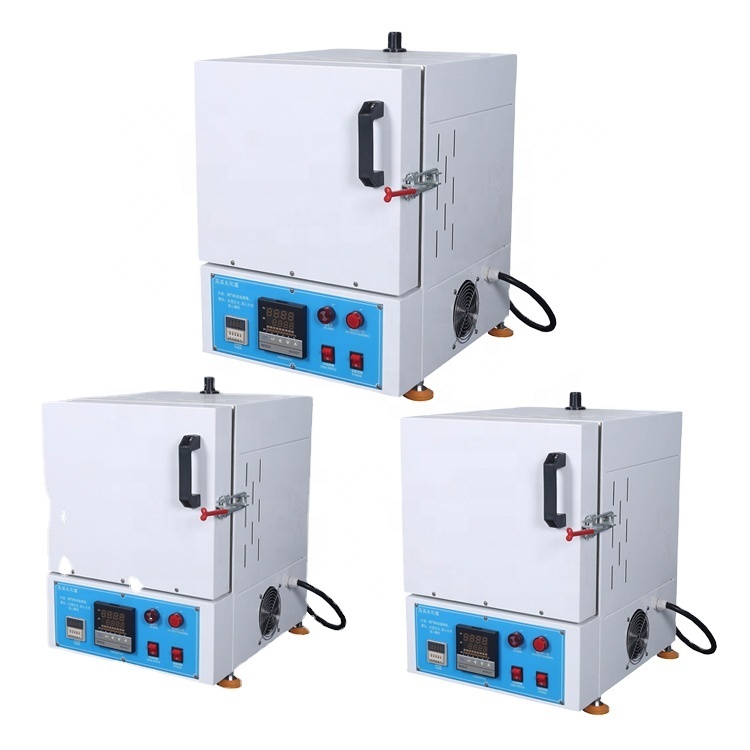

Product Images
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing, manufacturing, and marketing environmental equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we serve customers in over 150 countries.
Our production base in Dongguan, Guangdong province, along with our Kunshan office for Eastern China operations, allows us to provide efficient service and timely delivery. We're committed to helping customers establish quality testing labs through our range of environmental testers and material testing equipment.
Frequently Asked Questions
1. Are you the manufacturer? What about after-sales service and warranty?
Yes, we are a professional manufacturer of environmental testing equipment. All machines come with 12 months warranty (extendable to 14 months for overseas shipments). We provide free maintenance during warranty and offer technical support within 24-48 hours of problem identification.
2. What's the delivery time?
Standard machines typically ship within 15-20 working days after deposit. Stock items ship immediately. We can expedite production for urgent orders.
3. Do you accept customization and OEM services?
Yes, we offer both standard and customized machines, including OEM services with your logo. We can modify specifications to meet your specific requirements.
4. How can I install and use the machine?
We provide English operation videos with each order. Most machines ship fully assembled - just connect power to begin use. For complex installations, we offer remote or on-site assistance.
